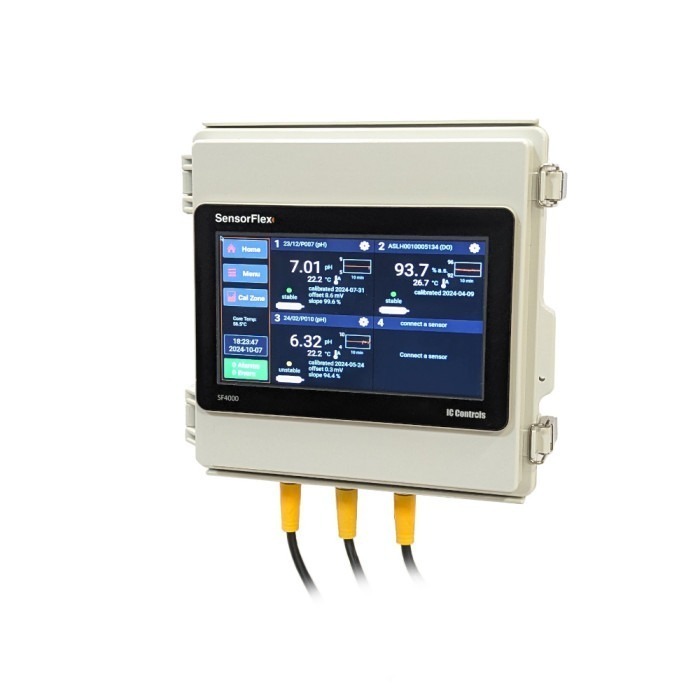

SensorFlex™ SF4000 Analyzer
IC Controls specializes in providing durable process equipment for challenging samples, including those that cause chemical attacks, scale, or have extreme ionic strengths. Their SensorFlex platform enhances their sensors with digital capabilities, improving diagnostics and usability. The platform supports various sensor types, including electrochemical and optical dissolved oxygen sensors, and includes calibration tools to optimize performance, extend maintenance intervals, and maximize efficiency.
Documentation
Click to download the document Download
For order Contact Us!
Call Us: +1 416 844 7296
email: info@source-tech.ca
Monday - Friday 9:00 - 17:00
email: info@source-tech.ca
Monday - Friday 9:00 - 17:00
Description
Description
| PROPERTY | CHARACTERISTIC |
|---|---|
| Maximum Sensor Inputs | 4 Total Sensors – any combination of SensorFlex digital sensors or Analog pH/ ORP Sensors connected via SensorFlex Digitizer |
| Sensor Input Type | SensorFlex Digital Sensor or SensorFlex pH/ORP Digitizer |
| Sensor Connector | 8-pin M12 |
| Measurement Types | pH, ORP, Dissolved Oxygen (DO), Toroidal Conductivity |
| Power | 115/230 VAC (± 10%), frequency 50/60 Hz |
| Host Communication | Modbus TCP (ethernet) |
| Outputs | 4 isolated analog outputs, 4-20 mA 4 relay outputs |
| Graphics Display | 7″ (178 mm) 800×480 LCD |
| Touchscreen | resistive, analog |
| Ambient Temperature | 0 to 60°C (32 to 140°F) |
| Relative Humidity | 10% to 95% (non-condensing) |
| Overall Dimensions | 9″ x 8.6″ x 5.1″ [228 mm x 218 mm x 130 mm] length x width x depth |
| Environment | IP65 |
| Ordering Part Number – Analyzer | SF4000 |
| Ordering Part Numbers – Sensors | pH: 607SF* 648SF* | Optical DO: 840SF (ppm)* & 841SF (ppb)* | Toroidal Conductivity: 440SF* |
| Ordering Part Number – Digitizer | pH: 640SF | ORP: 641SF |
